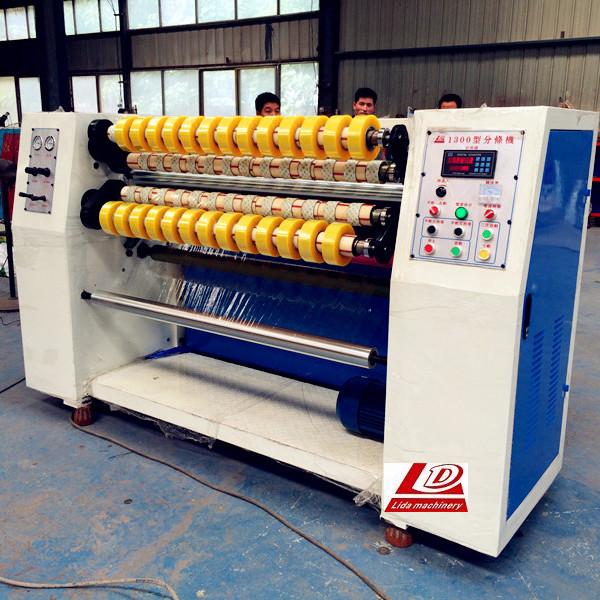

BOPP tape slitter rewinder machine
- Brand: ???LIDA
- Type: ???LD-1300C
BOPP tape slitter rewinder machine with silencer
It can cut tape roll to different size from 10mm to 1000mm and the final tape can be used for carton packing.
Details of the BOPP tape slitter rewinder machine:
Automatic Grade: Semi Automatic
Voltage: 380V, 460V
Power: 3KW
Speed: 180m/minute
Working width: 1300mm, 1600mm
Usage: BOPP tape roll, Masking tape roll cutting
Production time: 20days
After-sales Service Provided: Engineers available to service machinery overseas
Features:
1. Automatic consecutive 4-shaft changing:
when the rewinding operation is finished on one set of shafts, the machine will change automatically onto another set of shafts without any stop. It will have higher efficiency.
2.Three-step length counter: Giving accurate pre-setting of rewinding length.
3. Pneumatic brake: Brings the machine to an immediate halt when working at high speed because of inertia ,ensures excellent steady performance .
4. Automatic tension control
5. (Optional) Auto labeling and slitting stationery tape functions
6. (Optional)auto loading device for heavy jumbo roll
This LD-1300B adhesive tape cutting machine includes four parts: Slitting machine, core loader, core cutter and rewinder.
Paper tube cutting machine: Cutting long paper core to the right size you want.
Paper tube loader: Set the paper core on the rewinding shafts.
Tape rewinder: Rewinding the imperfect tapes to good one.
Technical parameters of this BOPP tape slitter rewinder machine:
|
Specifications of LD-1300A tape slitter rewinder machine |
||||
|
L*W*H(m) |
2.27m*1.15m*1.38m |
|||
|
Power |
3phase,380v,50Hz,25KW |
|||
|
Practical coating speed |
0-150/min |
|||
|
Working width |
1300mm |
|||
|
power |
4kw |
|||
|
Max unwinding diameter |
700mm |
|||
|
Specifications of LD-L1300 auto core loader (Set the paper core on the rewinding shafts) |
||||
|
L*W*H(M) |
5.6m*0.9m*1.35m |
|||
|
Inner diameter of paper core |
3 inches |
|||
|
With 2 moulds, size custom-made |
||||
|
Specifications of LD-P1300 auto core cutter (Cutting long paper core to the right size you want) |
||||
|
L*W*H(M) |
1500mm*600mm*1150mm |
|||
|
Slitting width |
By mould control |
|||
|
Paper core diameter |
76.5 mm(3”) |
|||

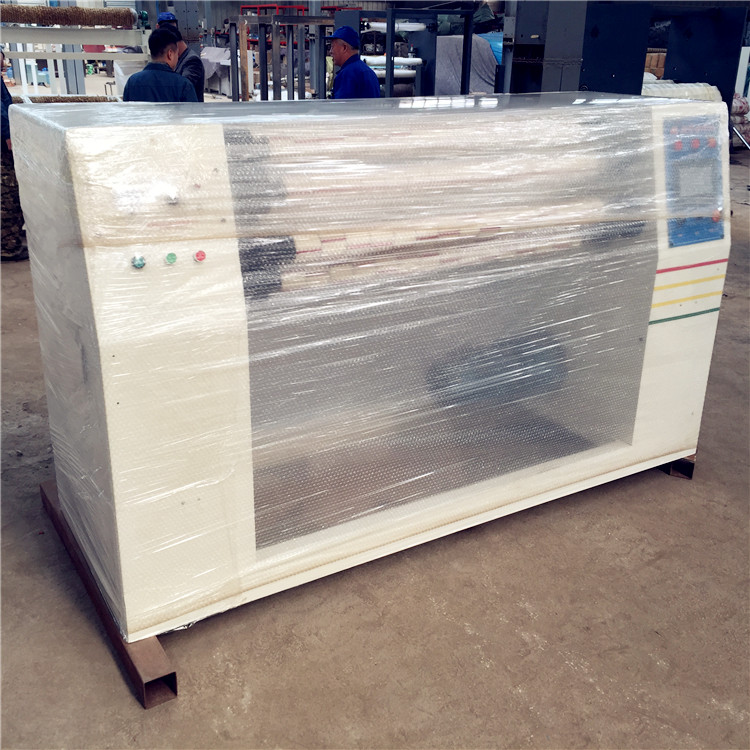

Packing:
